SUPERLUX DRK-B5C2 MK II

รหัสสินค้า : SUPERLUX-DRK-B5C2-MK II

DRK-B5C2 MKII (ไมค์กลอง 7 ชิ้น)

Drum microphones for recording studio

DRKB5C2MKII microphone set is an ideals candidate for stage performance and professional recording studio. It includes 7 mics to match different instruments.

--------------------------------------------------------------------------------

TYPE : Microphone set of 7 pcs., Including

# PRO - 218A : 1 Pcs ; Kick Drum/Bass

# PRO - 228A : 3 Pcs ; Tom Tom, Floor Tom, Snare Drum

# PRO - 268B : 2 Pcs ; Over Haed, High - Hat

# PRO - 288A : 1 Pcs ; Miking Snare Drum

----------------------------------------------------------

FEATURES

PRO218A kick drum Mic

• Specially designed for kick drum for its 174dB SPL maximum level and tuned frequency response. Also suitable for bass section instruments.

PRO228A tom-tom Mic

• Specially designed for tom-tom with permanent attached microphone clip. Also suitable for winds. 150dB SPL ability.

PRO268B over-head Mic

• Back electret condenser microphone for drum set overhead. Also suitable for mid to high frequency instruments. Inter-changeable capsule design.

PRA288A snare noise Mic

• Specially designed for snare noise pick-up. Tuned frequency response with roll off low end, and slightly roll off hi end. Good for mid-high frequency biased instrument.

--------------------------------------------------------------------------------------

SPECIFICATIONS

PRO218A

Type: Dynamic Microphone

Element:Neodymium Magnet Capsule, Transformer output

Polar pattern: Super Cardioid

Frequency Response: 20~10000Hz

Sensitivity: -64dBv/pa (0.63mv/pa)

Rated Impedance: 45Ω

Max.SPL:170dB(THD≦1%1000Hz) D

imension: 58mm x 140 mm

Weight: 350g

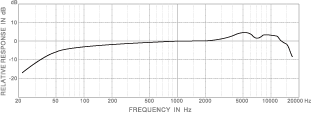

PRO228A

Type: Dynamic Microphone

Element:Neodymium Magnet Capsule, Transformer output

Polar pattern: Super Cardioid

Frequency Response: 50~16000Hz

Sensitivity: -54dBv/pa (2.0mv/pa)

Rated Impedance: 300Ω

Max.SPL:150dB(THD≦1%1000Hz)

Dimension: 43mm x 123 mm x 80 mm

Weight: 180g

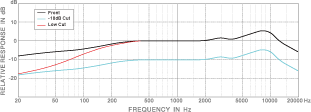

PRO268B

Type: Back Electret Condenser Microphone

Element: Pressure Gradient,transformerless circuitry

Polar Pattern: SuperCardioid

Frequency Response: 40-20000 Hz

Sensitivity: -43 dBV/pa(7.0 mv/pa)

Rated Impedance: 200Ω

Minimum Load Impedance: 1000 Ω

Max.SPL: 140dB(THD≦1%1000Hz) Phantom 48V

Dynamic Range: 115 dB

Power Supply: 9-52V Phantom

Current consumption: 2mA

Dimensions: Φ29(Max.)x240mm(L)

Weight: 270g(9.5 oz)

PRA288A

Type: Dynamic Microphone

Polar pattern: Cardioid

Frequency Response: 80~20000Hz

Sensitivity: -56dBv/pa (1.6mv/pa)

Rated Impedance: 500 kΩ

Max. SPL:140dB(THD≦1%1000Hz)

Dimension: 29 mm x 107mm

Weight: 110g(3.9oz)
